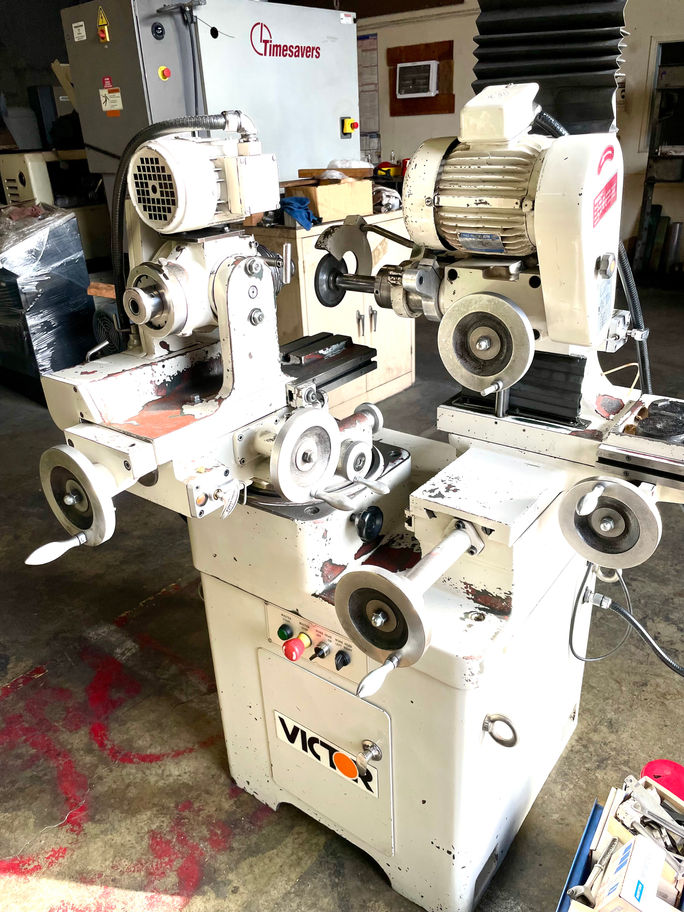

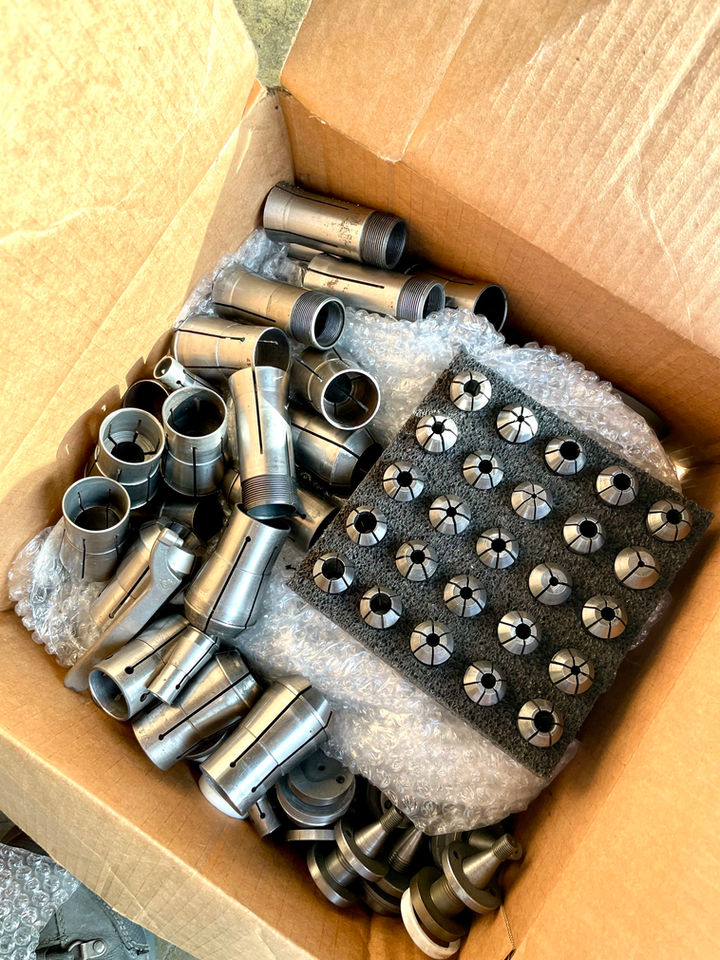

Victor CM-2 Monaset Tool and Cutter Grinder With Tooling

Specifications:

Max. Swing Over Main Slide: 12″ Diameter

Max. Collet Work: 1 1/4″ Diameter

Min. Collet Work: 0.12″

Min. Lead Generated by Spiral Lead Mechanism: 1.81″

Max. Length Between Spindle Nose and Tailstock Center: 6″

Max. Grinding: 4″ Diameter

Main Slide Travel: 5 3/4″

Offset Slide Travel: 5 1/4″

Front of Center: 3″

Rear of Center: 2 1/4″

Horizontal Plane (Turntable Base): 235°

Vertical Plane (Above/Below Center): 40°

Longitudinal Slide Travel: 6″

Vertical Slide Travel: 9 1/2″

Above Center: 4 1/2″

Below Center: 5″

Cross Slide Travel: 7 1/2″

Front of Center: 3″

Rear of Center: 4 1/2″

Workhead Speed: 436 RPM

Grinding Wheel Speeds: 4,000 RPM, 5,729 RPM, 8,000 RPM

Internal Grinding Attachment Speeds (Optional): 16,410 RPM, 23,510 RPM, 32,820 RPM

Workhead Motor: 1/4 HP

Wheelhead Motor: 1/2 HP
