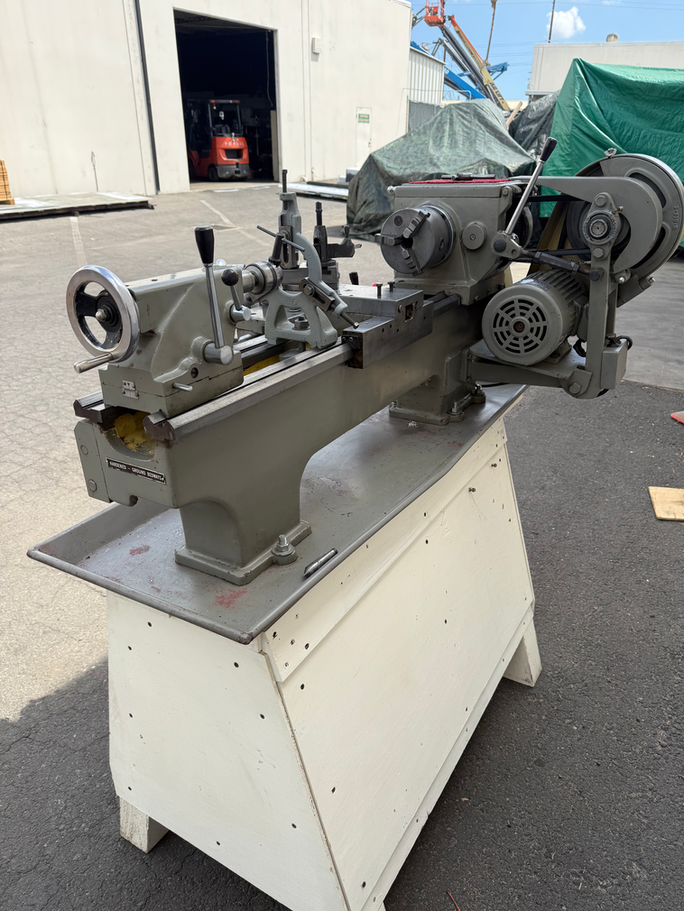

Select 1024B Lathe 10"x24"

Specifications:

Swing Over Bed: 10"

Distance Between Centers: 24"

Swing Over Cross Slide: 6"

Width of Bed: 6-1/8"

Spindle Bore (Thru Hole): 1-1/16"

Spindle Nose Taper: MT-4

Spindle Speeds (12): 60 - 1,250 RPM

Tailstock Taper: MT-2

Cross Slide Travel: 6"

Compound Slide Travel: 3-1/2"

Threading Range (Inch): 4 - 112 TPI

Threading Range (Metric): 0.25 - 6.0 mm

Dimensions (L x W x H): 52" x 26" x 48"

Weight: Approx. 850 Lbs.

Equipped With:

Power Supply: 220 Volt, Single-Phase (1 PH) Motor

Chuck Equipment: 6" 3-Jaw Scroll Chuck with Reversible Jaws

Tooling Support: Tool Post

Bed Construction: Induction Hardened and Ground V-Ways

Lubrication: One-Shot Bedway and Apron Lubricator

Accessories: Steady Rest and Face plate
