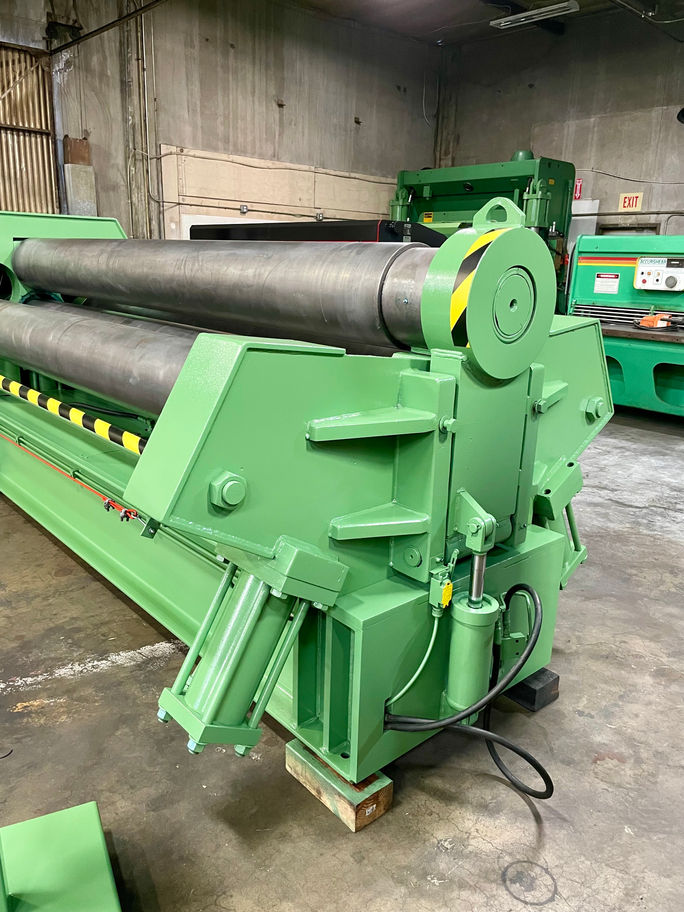

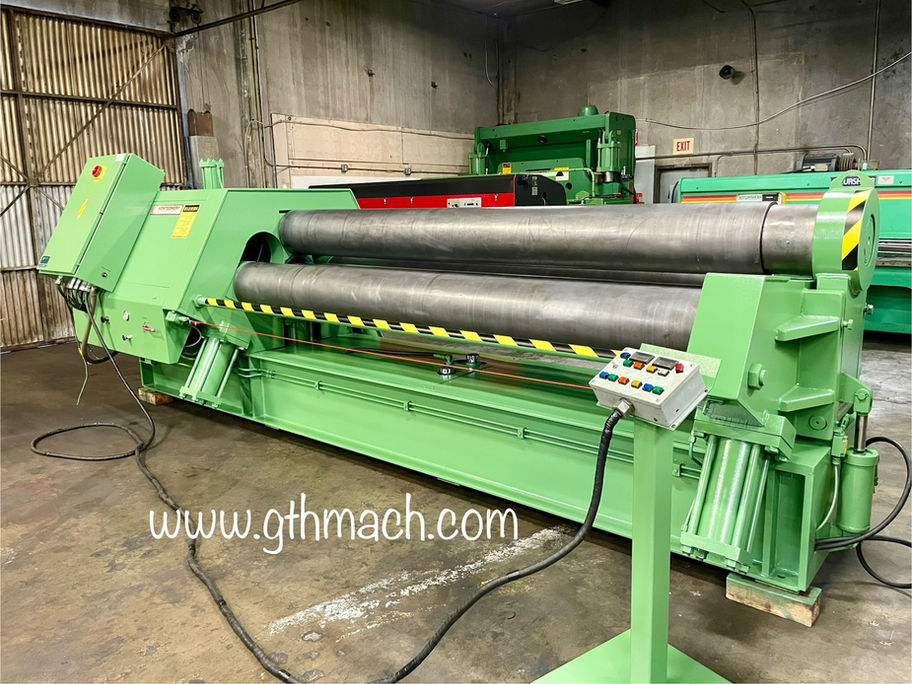

JM Montgomery 4R12050 Plate Roller 10’ X 1/2” Capacity 4 Roll

Capacity ................. 10 x 1/2
Roll diameter ............ 12"
Length of rolls .......... 122"
Number of Rolls......... 4
Roll speeds .............. 0 - 10 RPM variable speed
Hydraulic capacity ....... 35 gallons
Motor .................... 25 HP 230 / 460V  3ph
Dimensions: 205" x 60" x 60" high
Approximate weight: 25,000 lbs.

Machine is equipped with:

- Hydraulic drop end
- Power adjustable rear forming roll with digital position indicator
- Vari-speed with hi torque / low speed & low torque / high speed modes
- Hydraulic tilting forming roll
- Forward / reverse motion
- Remote operator stand with controls
- Emergency safety cable
- Top and Lower Roll are both driven
- Flush floor design
