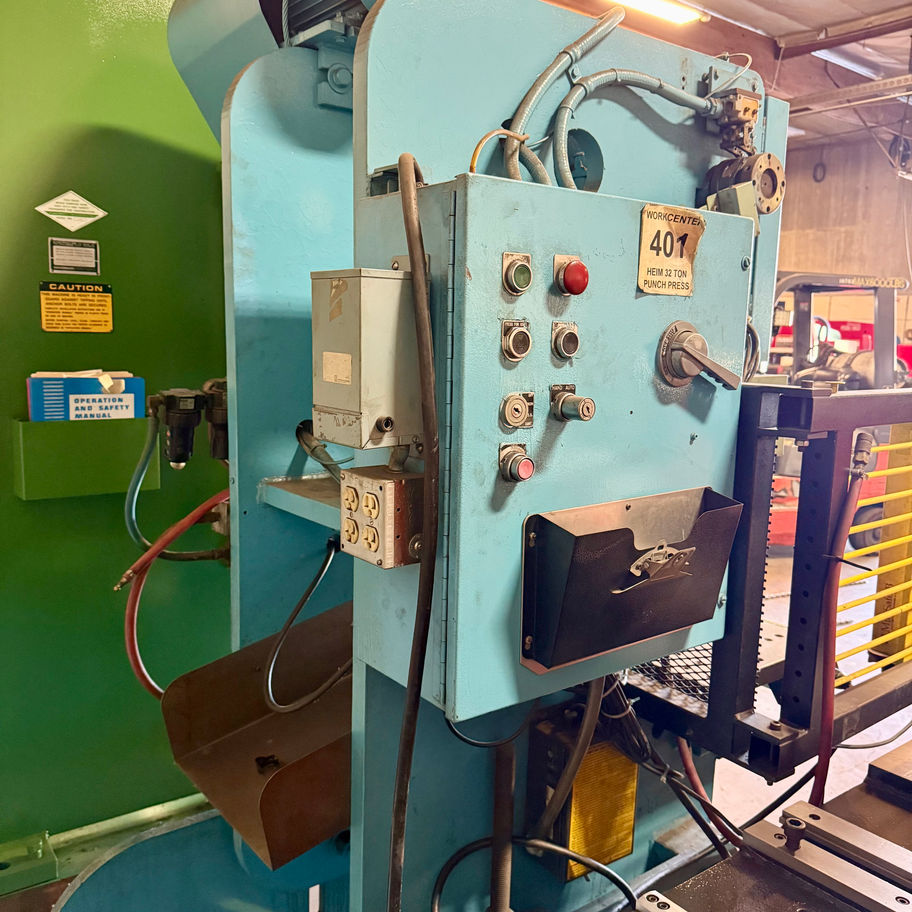

Heim OBI Punch Press 32 Tons With Air Clutch and Safety Light Curtains

Specifications:

Stroke ........................ 3"

Shut height (SDAU) over bed ... 10-1/2"

Adjustment .................... 2-1/2"

Speed ......................... 140 SPM

Bed area ...................... 24" LR X 15" FB

Ram area ...................... 12" LR X 9" FB

Bolster plate ................. 24" X 15" X 1 1/2" Thick

Throat ........................ 9"

Opening in back ............... 16"

Floor to bed distance ......... 34"

Motor ......................... 3 hp / 220/440V

Approximate overall dimensions 62 FB x 51 LR x 90 H

Approximate weight 4,000 lbs.

Machine is equipped with:

- Air clutch & brake

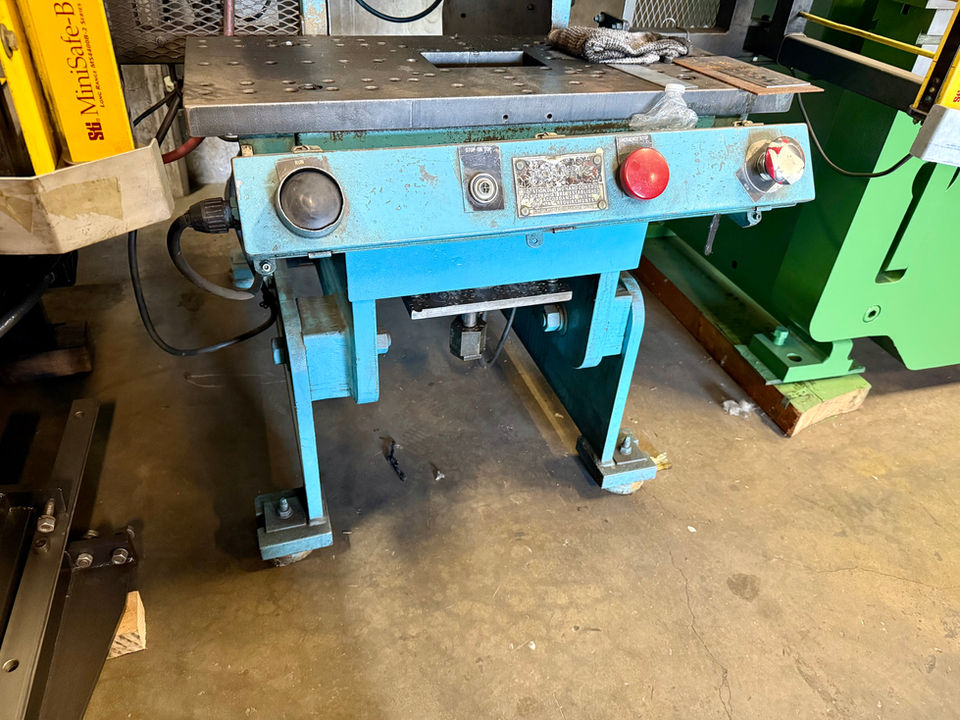

- Dual palm buttons w/ E-stop on remote T-stand

- Dual Ross air valve

- Lube system

- Inch, single & continuous operation mode selector

- Safety Light Curtains
