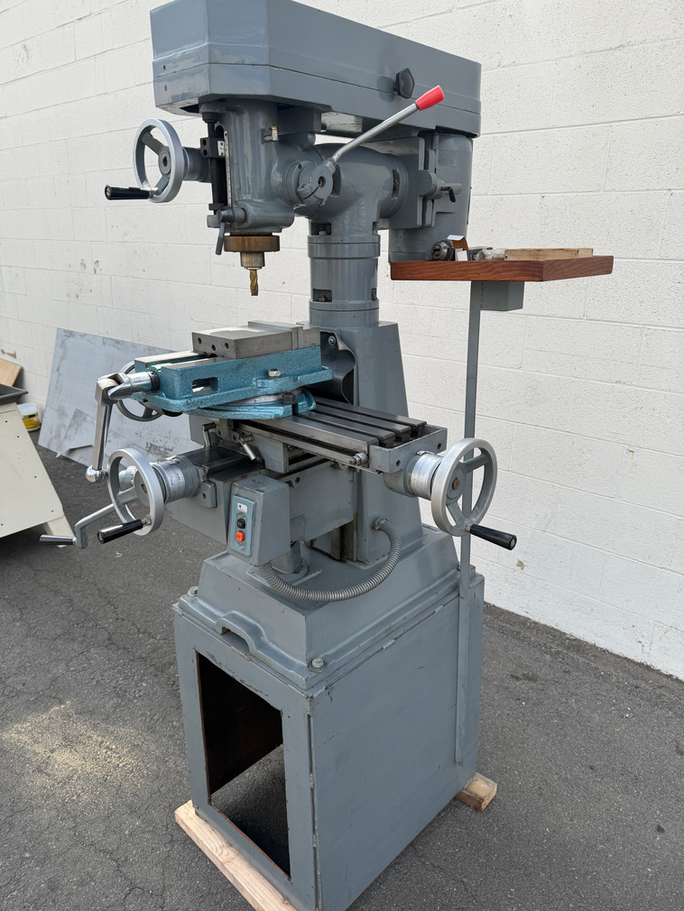

Enco Bench Knee Mill Milling Machine 6"x26" Table 110 Volts Single Phase

SPECIFICATIONS:


Spindle Speeds: 150 3160 RPM
Electrical: 115-230V Single Phase (currently wired 115V)
Spindle Taper: R8
Spindle Travel: 3.360"
Spindle Diameter: 1.715"
Quill Diameter: 2.95"
Maximum Distance Spindle to Table 7.625"
Minimum Distance Spindle to Table: 0.250"
Table Size: 6-1/8" x 26"
T-Slot Size (No.): 1/2"-(3)
Maximum Longitudinal Travel: 16
Minimum Cross Travel: 6.4"
Lead Screw: 7/8" x 8 TPI
Head Pivot: 45°-0°-45°
Head Swivel: 45°-0°-45°
Motor: 1 1/2 hp
Overall Height: 70"
Base Dimensions: 17" x 23-1/4" x 5"
Weight (Approx.): 710 lbs
