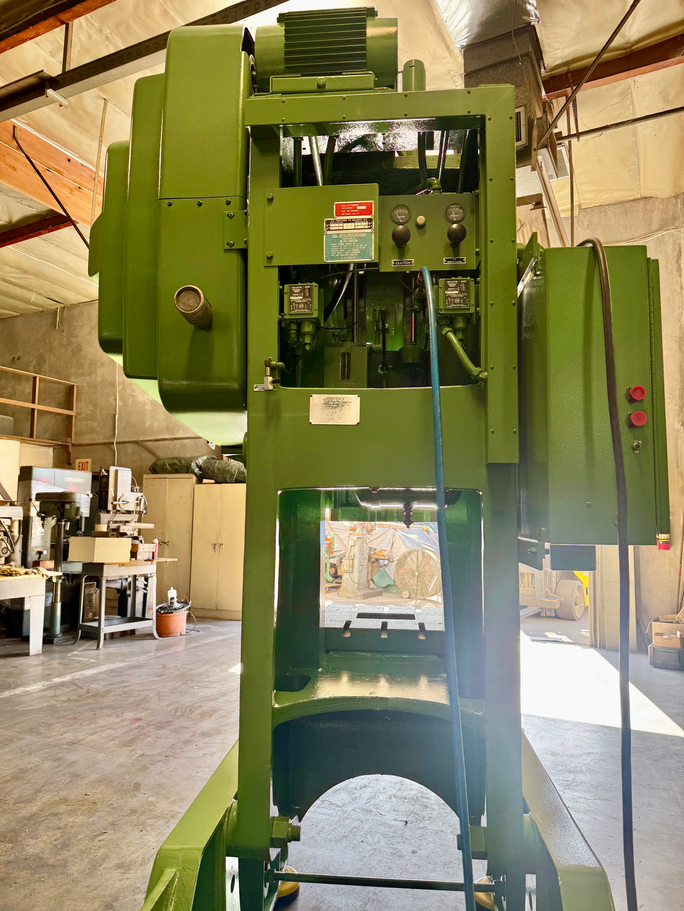

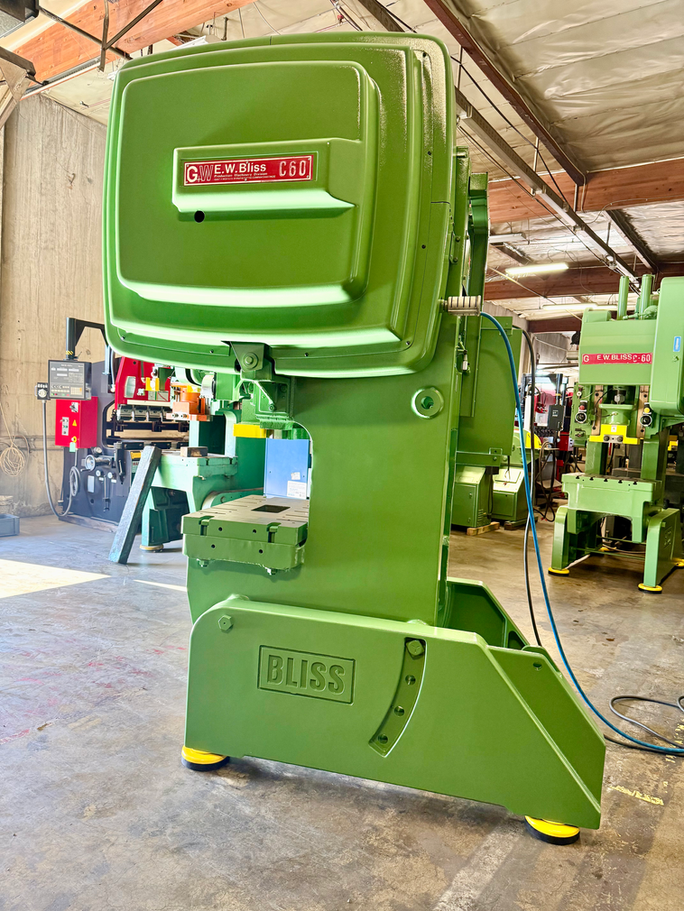

Bliss C-60 Punch Press 60 Ton Air Clutch

Bliss C-60 Punch Press 60 Ton Air Clutch

S/N H67218

SPECIFICATIONS:

RATED CAPACITY ............................ 60 TONS

STROKE ............................................ 4"

BED AREA .......................................... 32" X 22"

BOLSTER PLATE THICKNESS ........... 3"

RAM AREA ..........(WITH KNOCKOUT)......... 17" X 12-1/4"

ADJUSTMENT .............................................. 3"

SHUT HEIGHT ............................................. 14-1/4"

STROKES PER MINUTE ............................. 100

EQUIPPED WITH:

- AIR CLUTCH

- DUAL PALM BUTTONS

- INCH / SINGLE / CONTINUOUS MODES / BAR MODES

- BLISS CONTROL

- VIBRASHOCK FLOOR PADS

- SLIDE COUNTER BALANCE CYLINDERS

WEIGHT (APPROX) 12,000 lbs

DIMENSIONS (APPROX) 78" LR X 80" FB X 118" H
