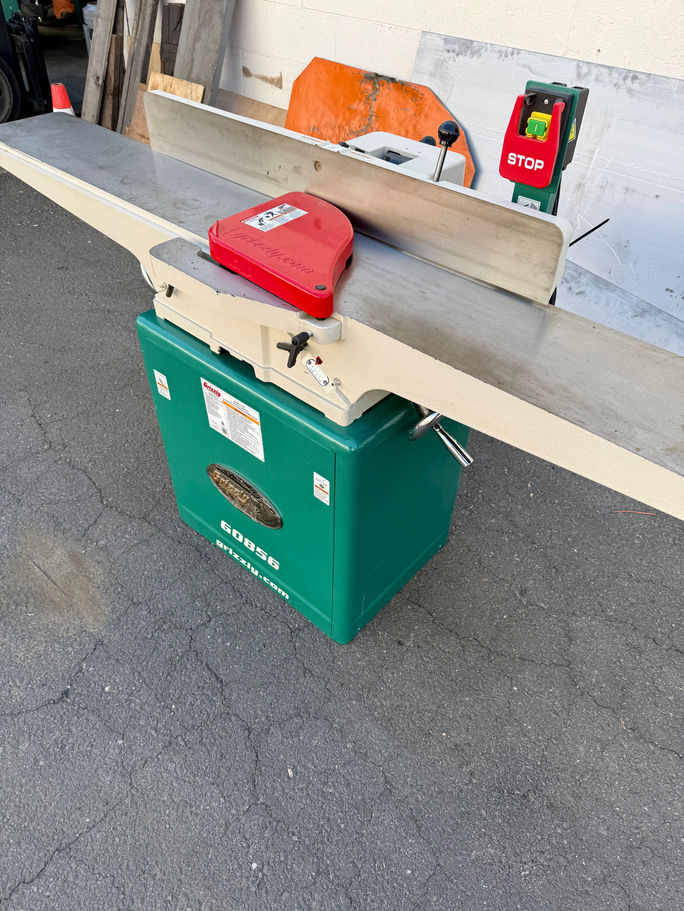

2024 Grizzly G0856 8” Dovetail Jointer & W/ Helical Cutterhead & Mobile Base

SPECIFICATIONS:

Motor: 3 HP, 230V, single-phase, 12 amps
Maximum width of cut: 8"
Maximum depth of cut: 1/8"
Maximum rabbeting depth: 1/2"
Minimum stock thickness: 1/2"
Minimum stock length: 10"
Cutterhead diameter: 3-1/16"
Cutterhead type: 4-row helical
Insert size and type: 15 x 15 x 2.5mm indexable carbide
Cutterhead speed: 5500 RPM
Table size: 8" x 72"
Dust port size: 4"
Footprint: 17" x 23-1/2"
Overall dimensions: 72-1/2" W x 25-1/2" D x 42" H
Approximate shipping weight: 450 lbs.

FEATURES:

Precision-ground cast-iron tables
Dovetailed bed ways

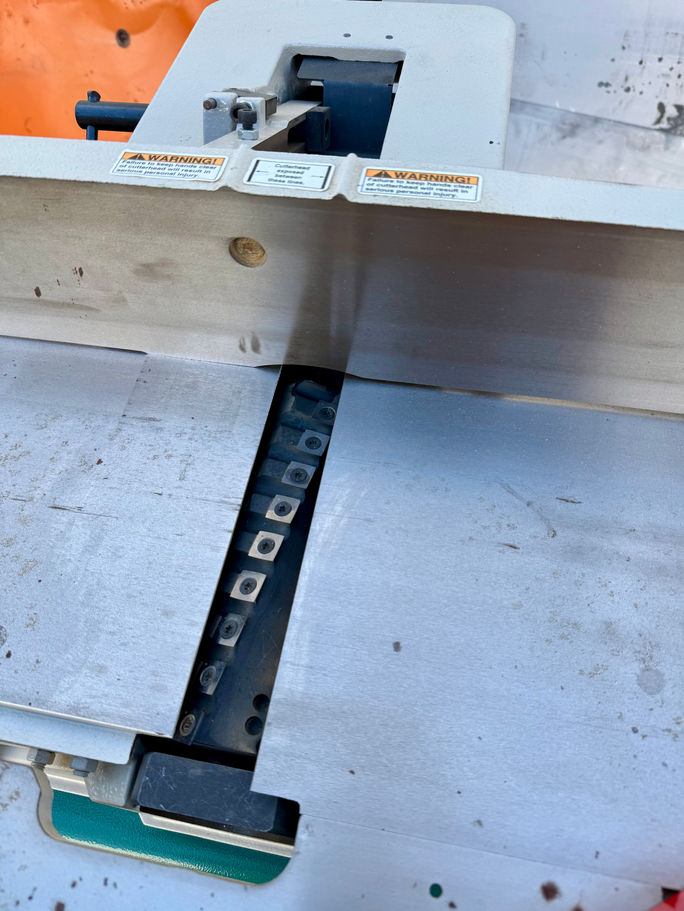

4-row helical cutterhead with 36 indexable carbide inserts
Built-in mobile base with non-directional casters
Center-mounted heavy-duty cast-iron fence
Rack-and-pinion fence adjustment

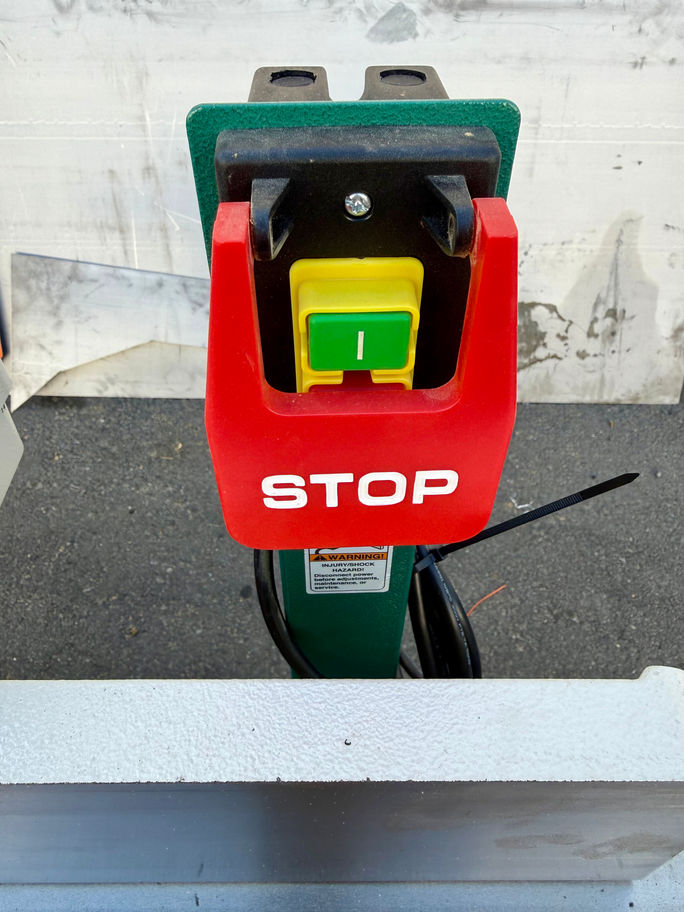

Pedestal-mounted switch with emergency stop paddle
Powder-coated finish
