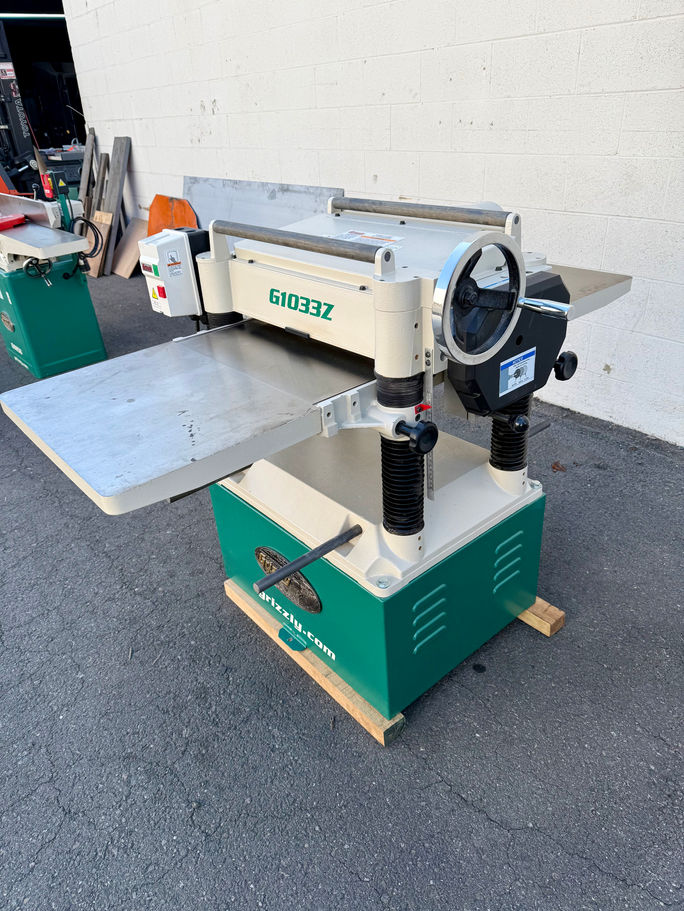

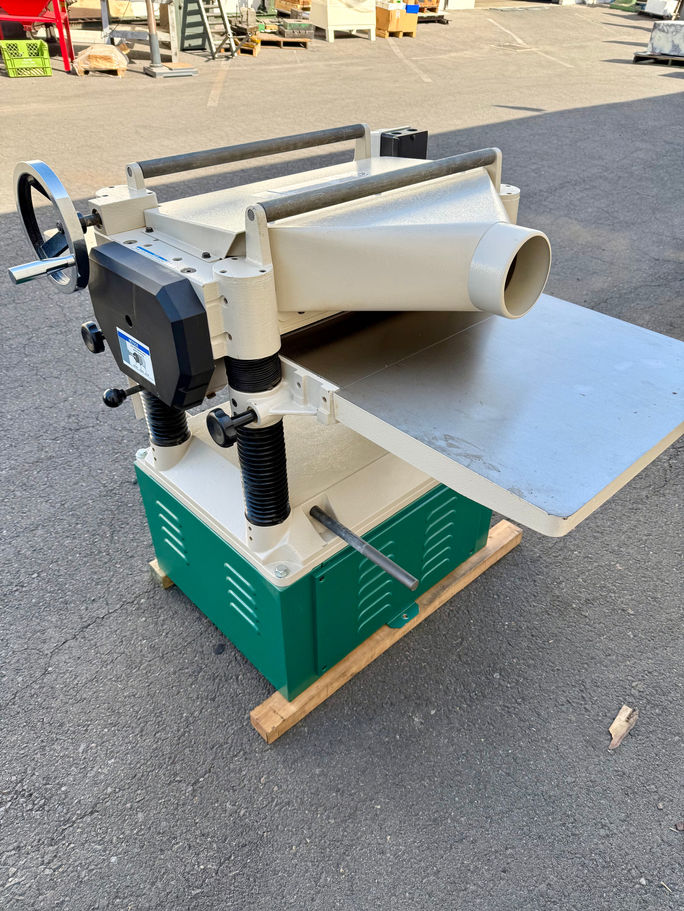

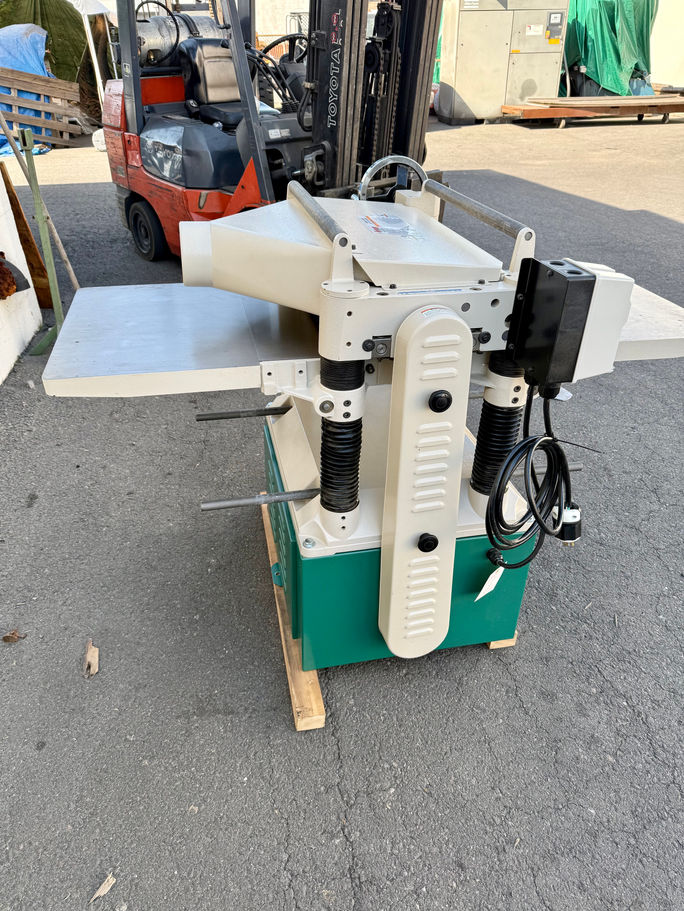

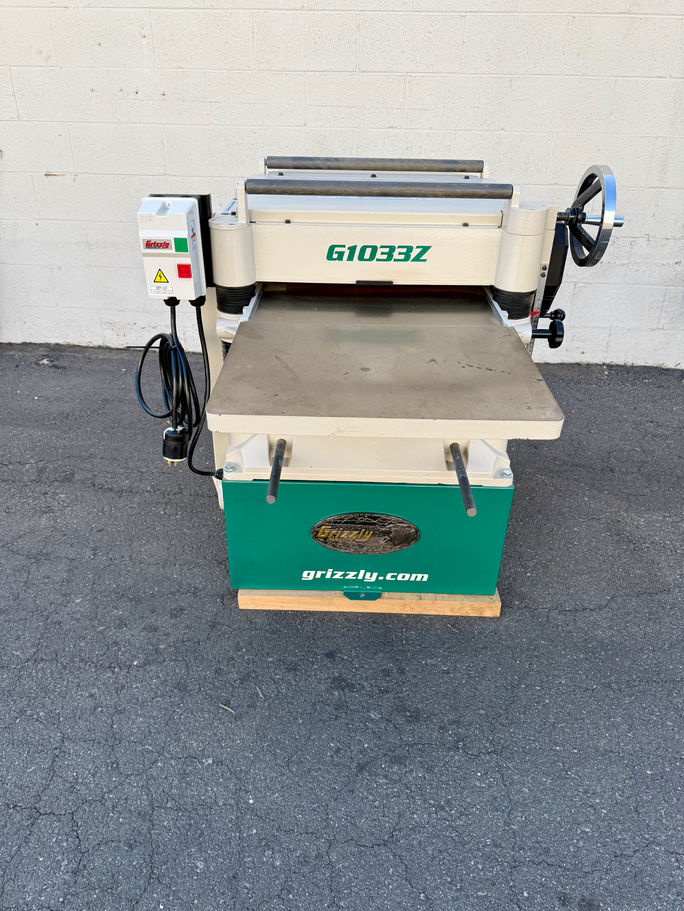

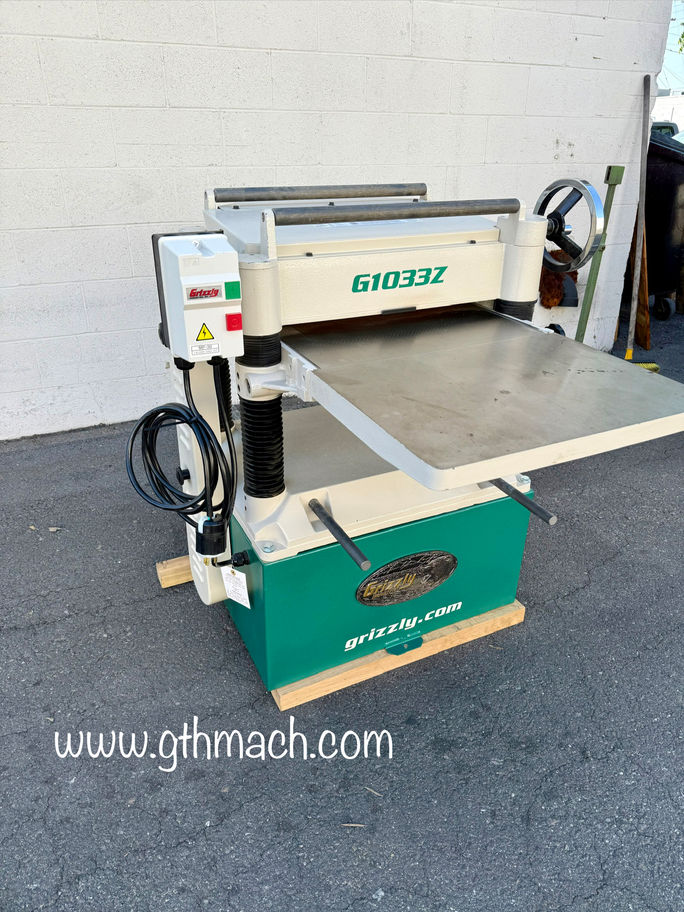

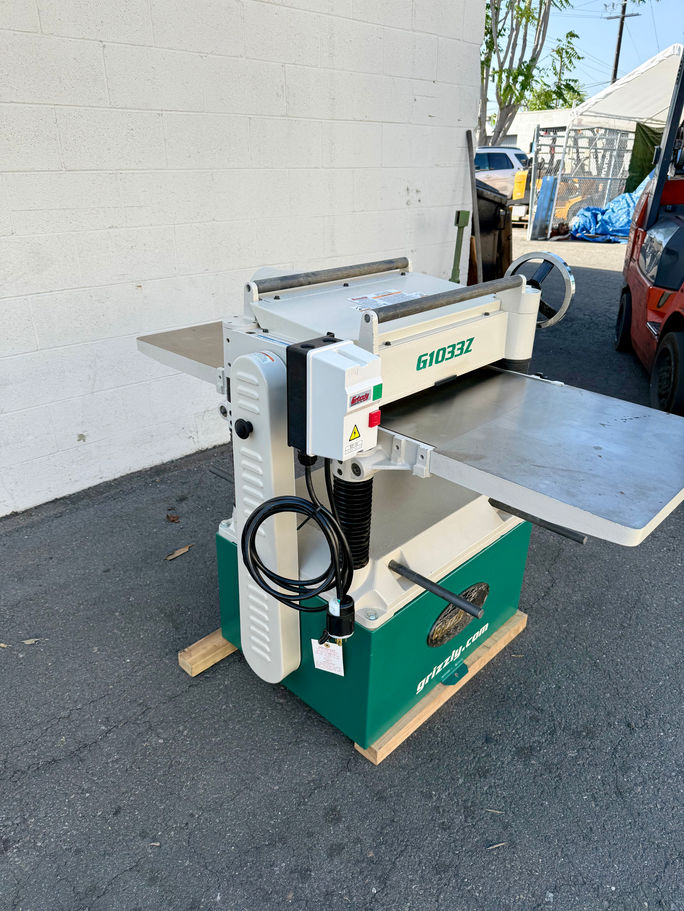

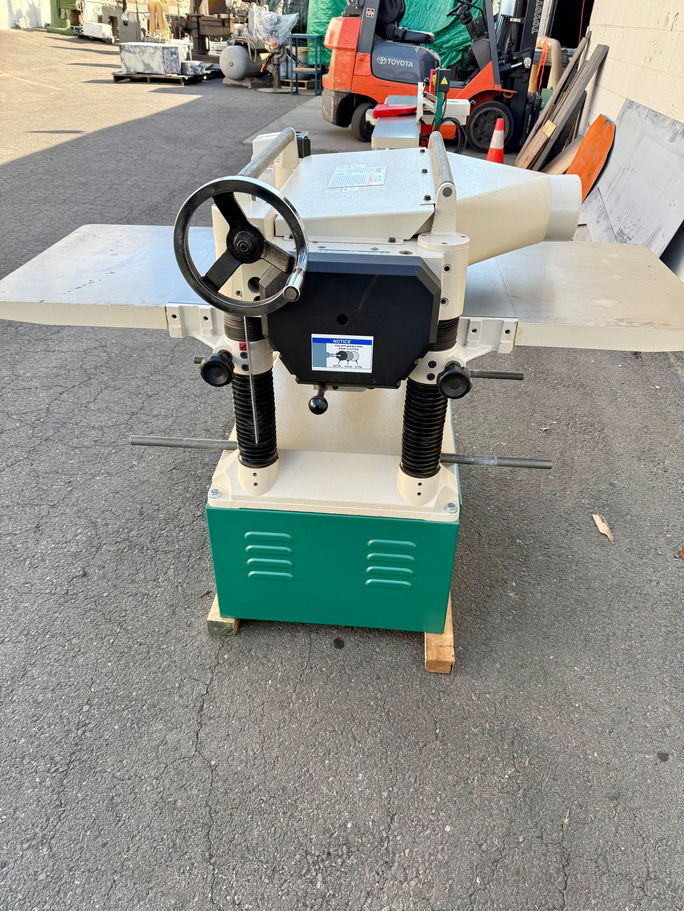

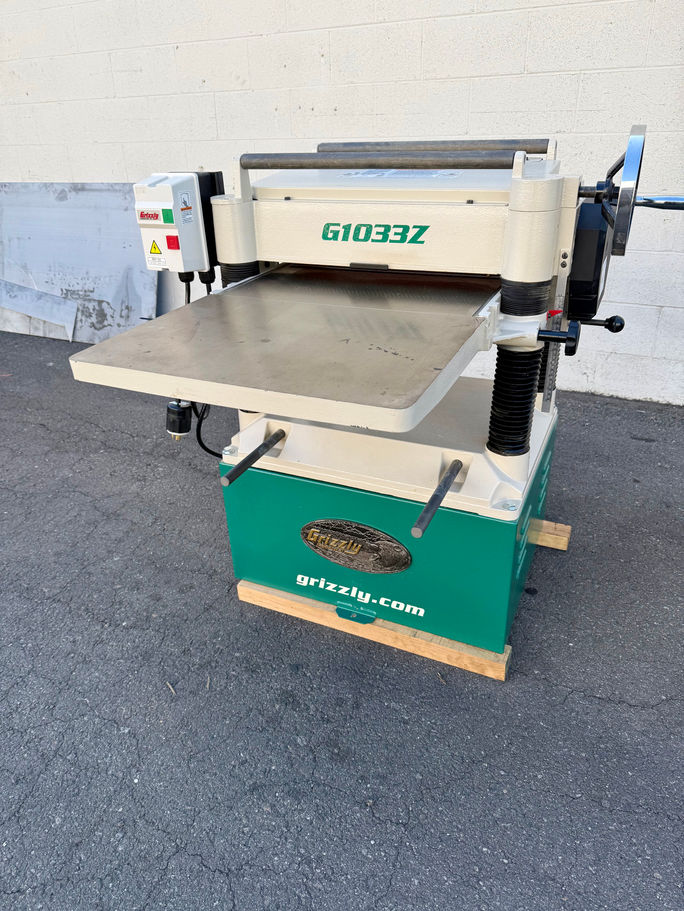

2023 Grizzly G1033Z 20” 5hp Planer

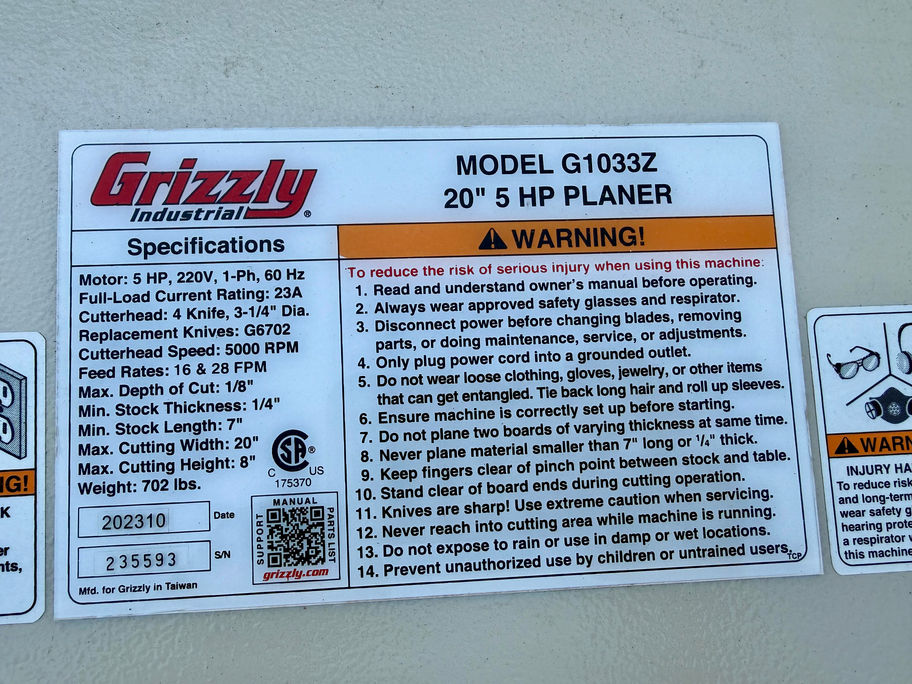

SPECIFICATIONS:

Motor: 5 HP, 230V, single-phase, 23 amps
Maximum stock width: 20"
Maximum stock thickness: 8"
Minimum stock thickness: 1/4"
Minimum stock length: 7"
Maximum cutting depth full width: 3/32"
Maximum cutting depth 6" wide board: 1/8"
Cutterhead diameter: 3-1/4"
Cutterhead type: 4-knife
Knife size and type: 20" x 1" x 1/8", HSS
Cutterhead speed: 5000 RPM
Feed rate: 16, 28 FPM
Table size with extensions: 20" x 58"

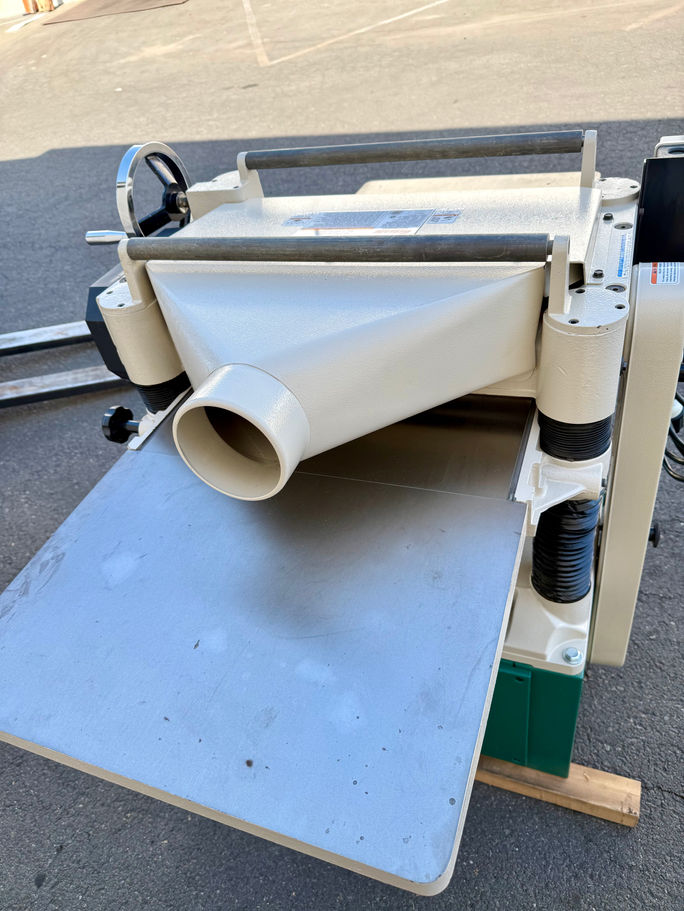

Dust port size: 5"
Footprint: 22" x 28"
Overall dimensions: 39" W x 58" D x 41" H
Approximate shipping weight: 702 lbs.

FEATURES:

Precision-ground cast-iron table and extension wings
Board return rollers
Adjustable bed rollers

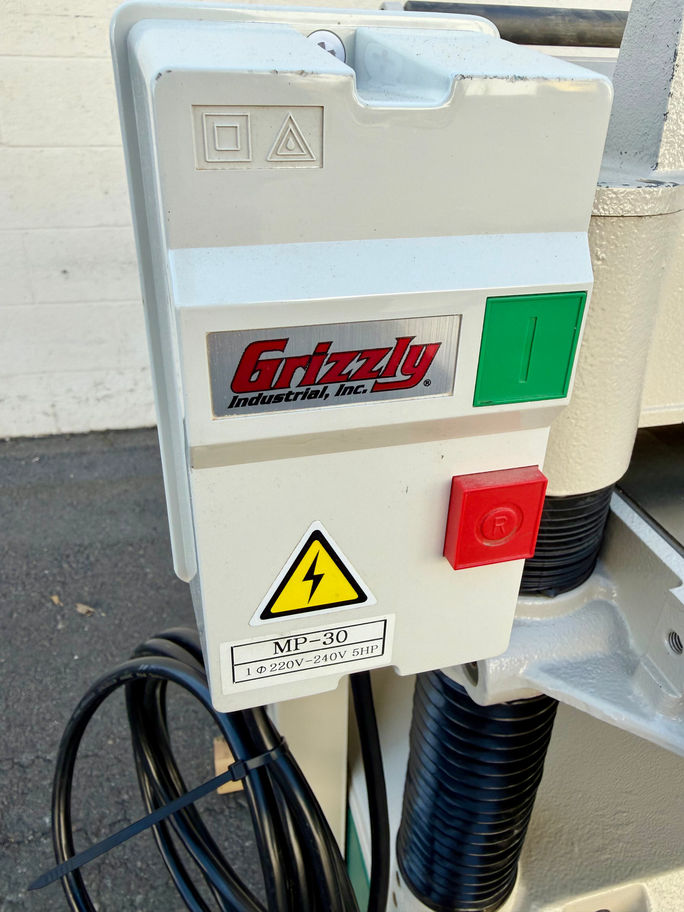

Magnetic switch with thermal overload protection
Two feed speeds for rough and finish planing
Triple belt drive
Anti-kickback fingers
Powder coated finish
