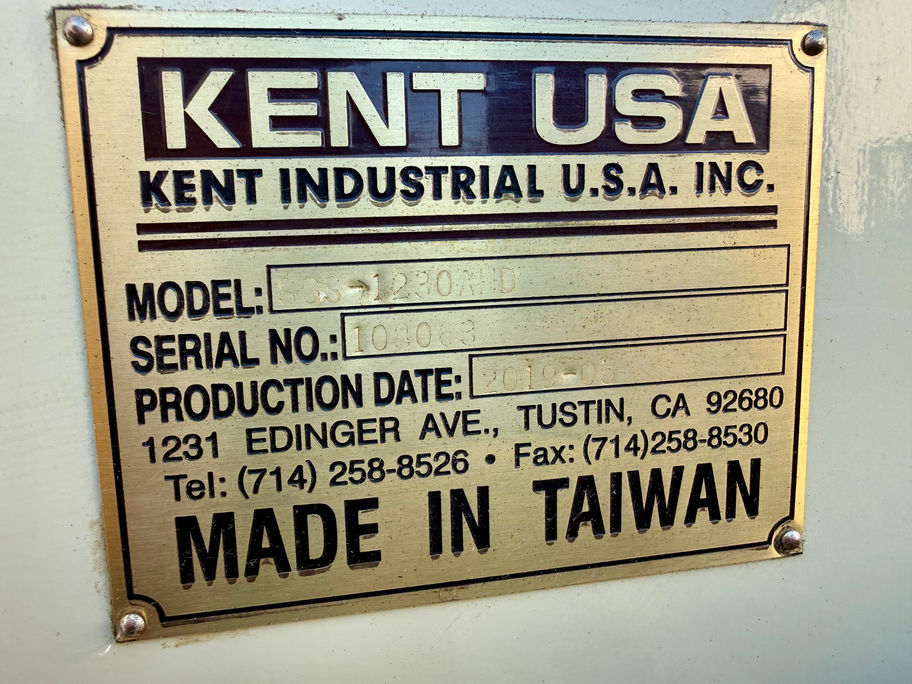

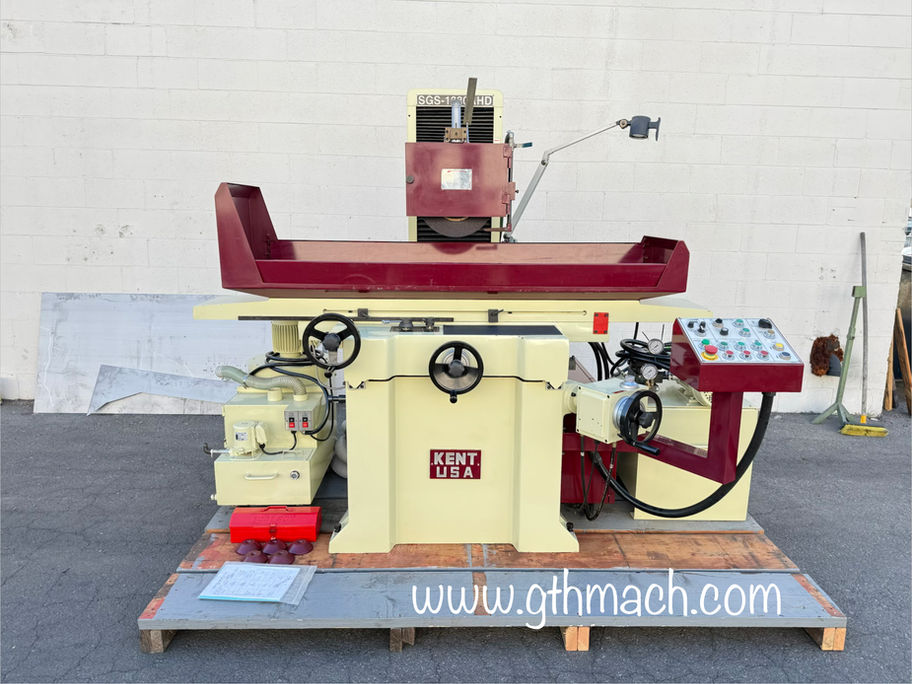

2019 Kent USA SGS-1230AHD Automatic Surface Grinder

SPECIFICATIONS:

Spindle motor: 5 HP, 230V/460V, 3-phase
Maximum grinding capacity: 12" x 30"
Table working surface: 10.2" x 29.5"
Maximum longitudinal table travel: 33"
Maximum cross saddle travel: 13.5"
Maximum distance spindle center to table: 23.6"
Grinding wheel size: 14" x 1-1/4" x 5"
Spindle speed: 1750 RPM
Hydraulic longitudinal feed rate: 16 to 80 FPM
Automatic crossfeed range: 0 to 5/8"
Automatic downfeed increments: 0.0001" to 0.001" (10 steps)
Vertical handwheel graduation: 0.0005"
Vertical handwheel revolution: 0.100"
T-slot size: 1 x 9/16"
Approximate machine net weight: 4,290 lbs.

FEATURES:

3-axis fully automatic operation
Precision hand-scraped Turcite-B table and saddle ways
Dynamically balanced cartridge-type spindle
High-column design for extra clearance under the wheel
Rapid elevation motor for quick wheelhead positioning
Centralized automatic lubrication system
Direct-reading slip ring to set total material to grind
Automatic spark-out cycle control
Safe 24V operator control circuit power
