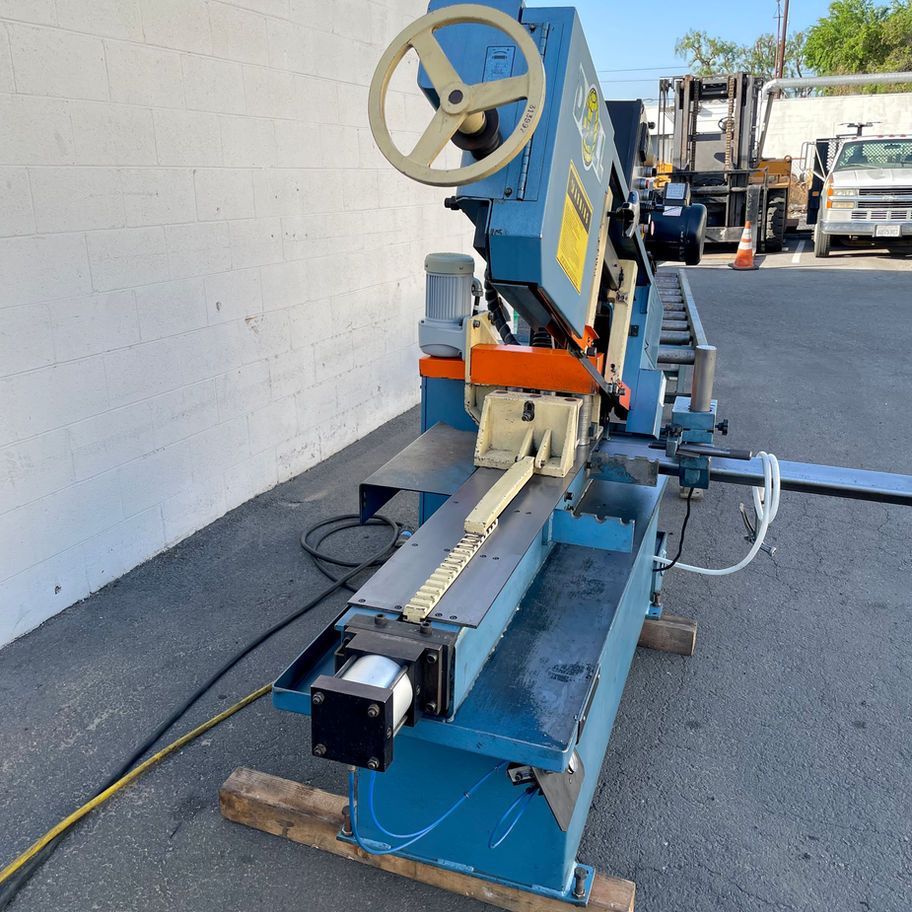

2008 DoAll C-916A Automatic Horizontal Band Saw 9” X 16” Capacity

SPECIFICATIONS:
Rectangular Capacity – 90 Degrees…………9″ x 16″
Round Capacity – 90 Degrees…………10-3/4″
Saw Band – Maximum…………1″ x 0.035″ x 158″
Drive Motor…………2 HP
Band Tension…………30,000 PSI
Band Speed – Variable…………105 – 275 FPM
Band Wheels…………14-1/2″
Index Length…………3/16″ – 24″
Index Repeatability…………+/-0.015″
Coolant System – Recirculating…………5 Gals.
Actual Dimensions…………84″(L-R) x 90″(F-B) x 60″(H)
Approximate Weight…………1,300 Lbs.

EQUIPPED WITH:
Infinitely Variable Hydraulic Control w/Spring Balanced Head
Powered Vertical Pinch Roller Feed System
Head Control Switch/Valve
Recirculating Cooland System
Speed & Feed System
Band Door Interlocks
Automatic Vice w/Variable Pressure
8′ Conveyor
