2000 Mori Seiki SV-500 B/40 CNC Mill Machining Center 40"X20" Fanuc Control

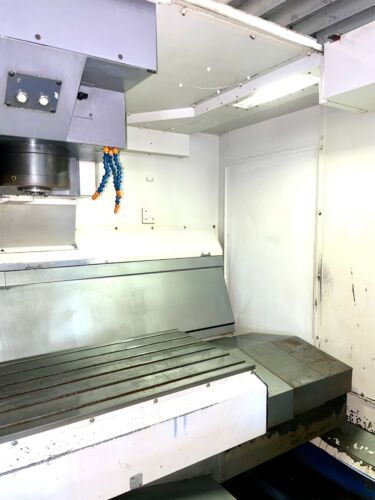

Mori Seiki SV-500 B/40 CNC Machining Center

SPECIFICATIONS

Table Size 43.3" x 23.6"
Table Load Capacity 2,200 lbs.
X-Axis Travel 40.5"
Y-Axis Travel 20.1"
Z-Axis Travel 20.1"
Tool Magazine Capacity 30 Position ATC
Tool Change Time-chip to chip 3.1 seconds
Max. Tool Diameter / Length 4.9" / 11.8"
Spindle Taper BT #40 Taper
Spindle Motor 30 Min. / Cont. 30 / 25 HP
Spindle Speed 10,000 RPM
Table Top to Spindle Nose 5.9" - 26"
Rapid Traverse Rates 1259 IPM
Machine Dimensions 102" x 93" x 113"
Machine Weight 17,120 lbs.

Equipped with:

30 Station Side Mounted Tool Changer
Rigid Tapping
RS 232 Port Interface
Oil Cooler
Auto Power Off System
Coolant System
