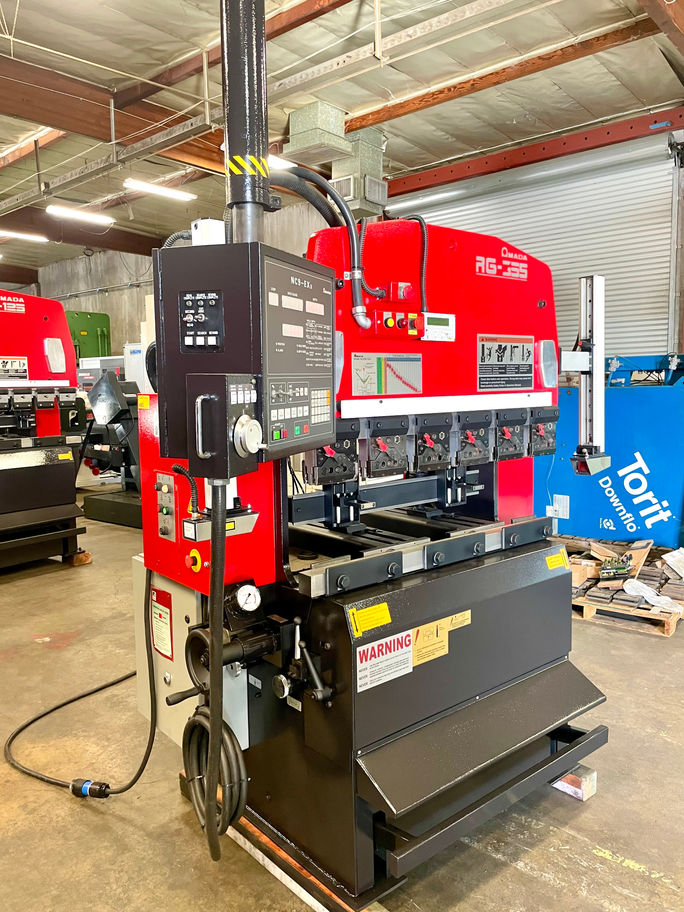

1998 Amada RG-35S CNC Press Brake with NC9-EXII Control and Lazersafe Light

Specifications:
Capacity 35 tons -US Tons 38
Max. bending length 49.3"
Table length 47.3"
Distance between uprights 40.2"
Throat depth 7.88"
Length of stroke 3.94"
Open height 14.58"
Ram repeatability +/- .0004"
Back gauge travel 19.6"
Approach speed 106 ipm
Bend speed 2-19 ipm
Return speed 122 ipm
Main motor 3 HP Input power 460 V 3PH
Hydraulic reservoir capacity 6.86 gallons
Machine dimensions 72"L x 46"D x 76"H Machine weight 3,700 lbs
Equipped With:
NC9-EXII 3-Axes Control & Back Gauge
(2) Pneumatic Adjustable Fingers
Foot Treadle
Remote Handwheel Depth Control
Pressure Gauge
Amada Quick change Die Holders
LazerSafe Lights Curtains
