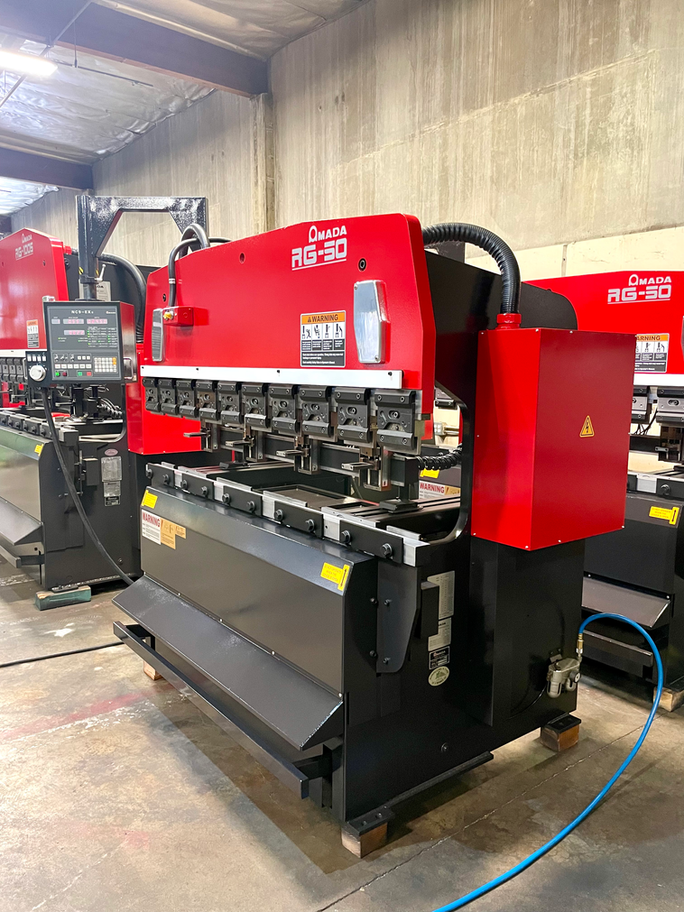

1995 Amada RG-50 Hydraulic CNC Press Brake With NC9-EXII Control

Specifications:

Capacity 50 tons -US Tons 55

Max. bending length 82.1"

Table length 78.8"

Distance between uprights 59.9"

Throat depth 15.76"

Length of stroke 3.94"

Open height 14.58"

Ram repeatability +/- .0004"

Back gauge travel 19.6"

Approach speed 106 ipm

Bend speed 2-19 ipm

Return speed 122 ipm

Main motor 5 HP Input power 460 V 3PH

Hydraulic reservoir capacity 13.46 gallons

Machine dimensions 82"L x 56"D x 76"H Machine weight 6,600 lbs

Equipped With:

NC9-EXII 3-Axes Control & Back Gauge

(4) Pneumatic Adjustable Fingers

Foot Treadle

Remote Handwheel Depth Control

Pressure Gauge

(10) Amada Die Holders
