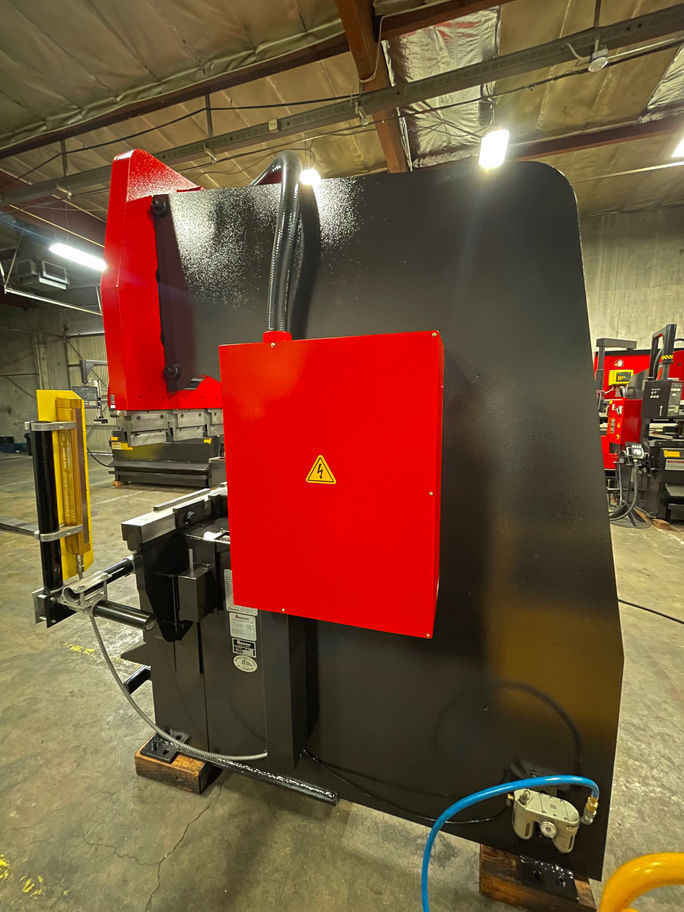

1995 Amada RG-125 CNC Press Brake NC9-EXII Control With Protech Light Curtain

Specifications:
Capacity 125 tons US Ton 138
Max. bending length 122.1"
Table length 118.2"
Distance between uprights 100.5"
Throat depth 15.76"
Length of stroke 3.94"
Open height 14.58"
Ram repeatability +/- .0004"
Back gauge travel 19.6"
Approach speed 106 ipm
Bend speed 2-19 ipm
Return speed 122 ipm
Main motor 15 HP
Input power 460 V 3PH
Machine dimensions 152"L x 75"D x 91"H
Machine weight 16,800 lbs
Equipped With:
NC9-EXII 3-Axes Control & Back Gauge
(4) Pneumatic Adjustable Fingers
Foot Treadle and Electric Foot Switch
Remote Handwheel Depth Control
Pressure Gauge
(15) Amada Die Holders

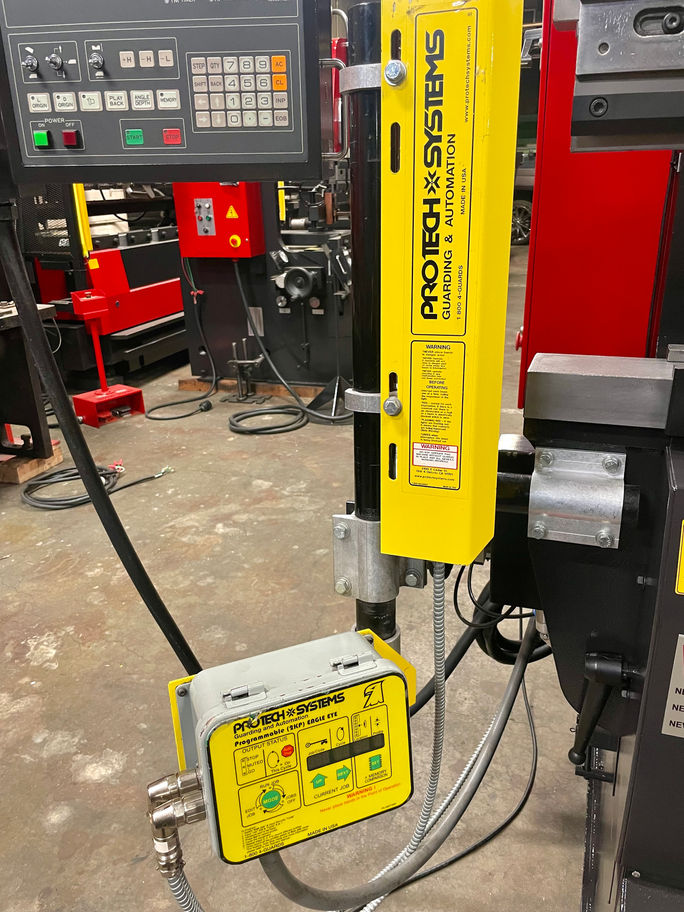

ProTech Systems Light Curtain
